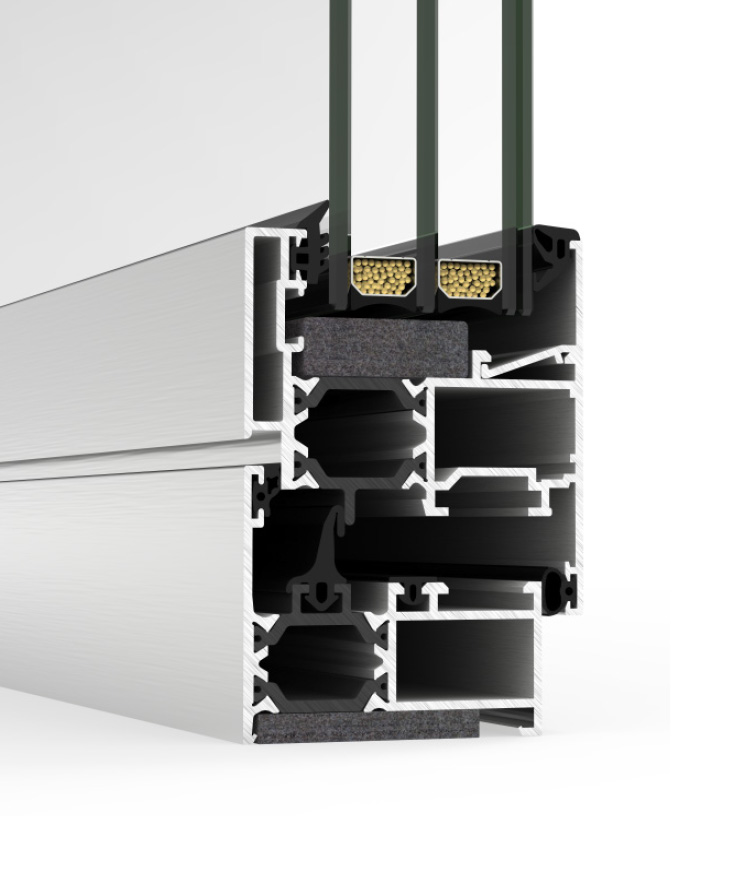

Hinged Window and Door Systems
COR 3500
TECHNICAL FILE
Transmittance
UW ≥ 1.0 (W/m2K)
Consult typology, dimensions and glass.
Acoustic insulation
Maximum glazing 41 mm
Minimum glazing 5 mm
Maximum acoustic insulation Rw = 46 dB
Sightlines
Frame 54 mm
Sash 63 mm
Profile Thickness
Window 1.5 mm
Door 1.7 mm
Polyamide strip length 24 mm
Maximum dimensions / Sash
Width (L) = 1,500 mm
Height (H) = 2,400 mm
Consult maximum weight and dimensions according to typologies.
Maximum weight / Sash 120 kg
Categories achieved at test center
Protection against atmospheric agents.
Air permeability
(UNE-EN 12207): Class 4
Water tightness
(UNE-EN 12208): Class E1200
Wind resistance
(UNE-EN 12210): Class C5
* Reference test 1.20 x 1.20 m / 2 sashes.
Test verified by
ALUMINIOS CORTIZO S.A.U.
Extrusion alloy 6063 T-5
Finishes
Possibility of dual colour
Colour powder coating (RAL, mottled & rough)
According to Qualicoat >60 microns
Wood effect powder coating
According to Qualideco standard
Anodised
According to Ewwa Euras / Standard Class 15 / Optionally Class 20 and 25
Opening possibilities
Inward opening: side hung, tilt & turn, parallel sliding
And bottom hung.
Outward opening: side hung and top hung projecting.
