Hinged Window and Door Systems
COR 60

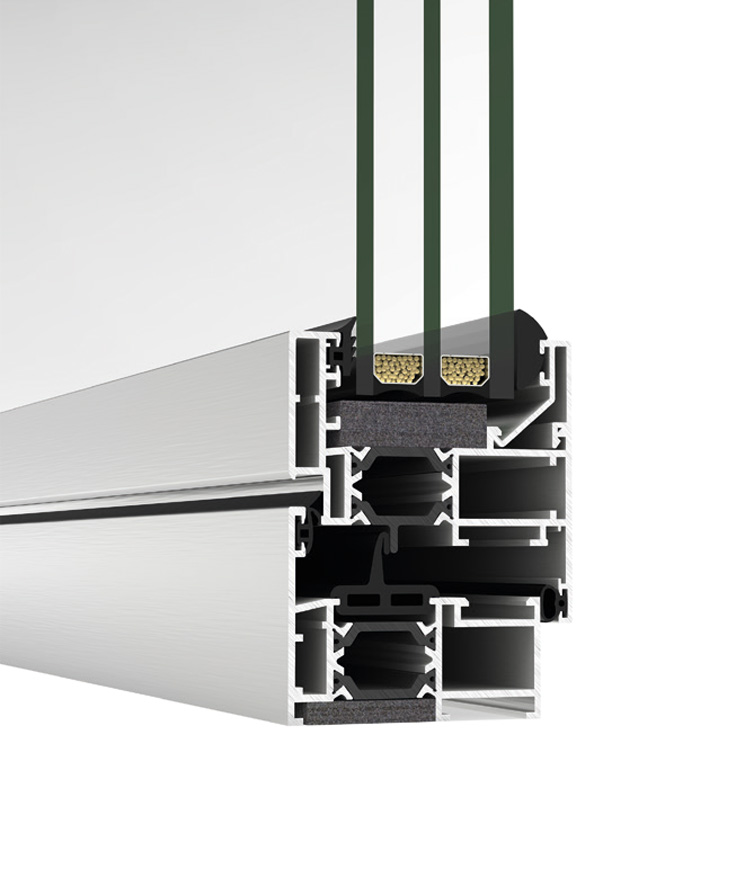

Hinged system with a 60 mm frame depth, equipped with 24 mm polyamide strips, offering outstanding
thermal and acoustic comfort and achieving noise attenuation of up to 48 dB.
COR 60 is a versatile solution for aluminium windows and doors that combines thermal, acoustic and watertightness performance with a wide variety of inward and outward openings.
THERMAL TRANSMITTANCE
Uw ≥ 1.0 W/m²K
ACOUSTIC INSULATION
Rw up to 48 dB
WATER TIGHTNESS
Class E1350
WIND RESISTANCE
Class C5
System technical information
Main data
SECTIONS
Frame 60 mm · Sash 68 mm
POLYAMIDE STRIP LENGTH
24 mm
PROFILE THICKNESS
Window 1.6 mm · Door 1.6 mm
GLAZING
Max. 46 mm · Min. 5 mm
MAX. SASH DIMENSIONS
Width 1500 mm · Height 2600 mm
MAX. SASH WEIGHT
160 kg
