Hinged Window and Door Systems

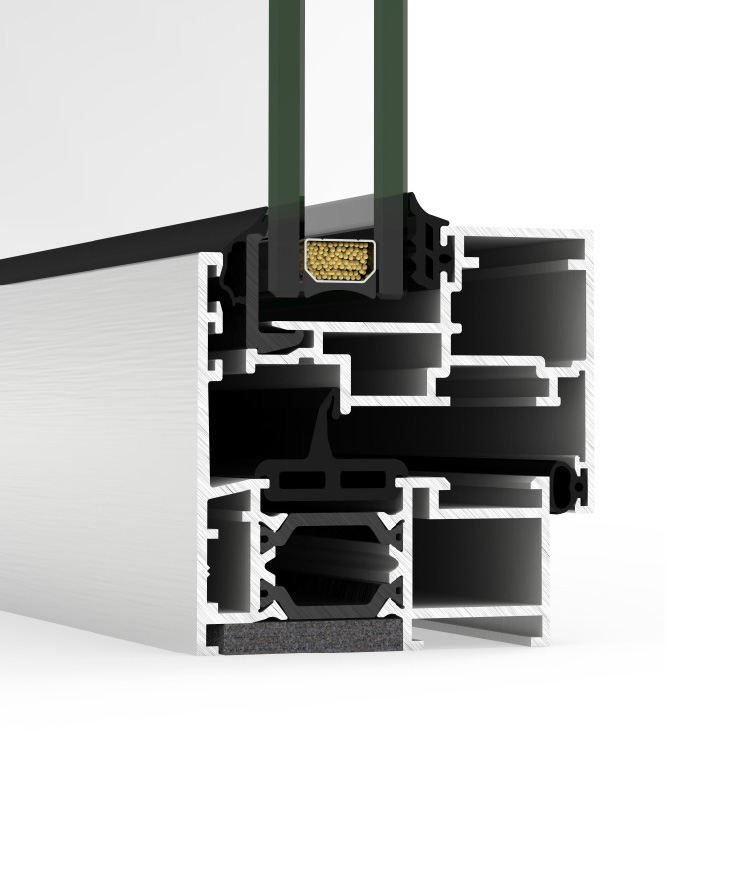

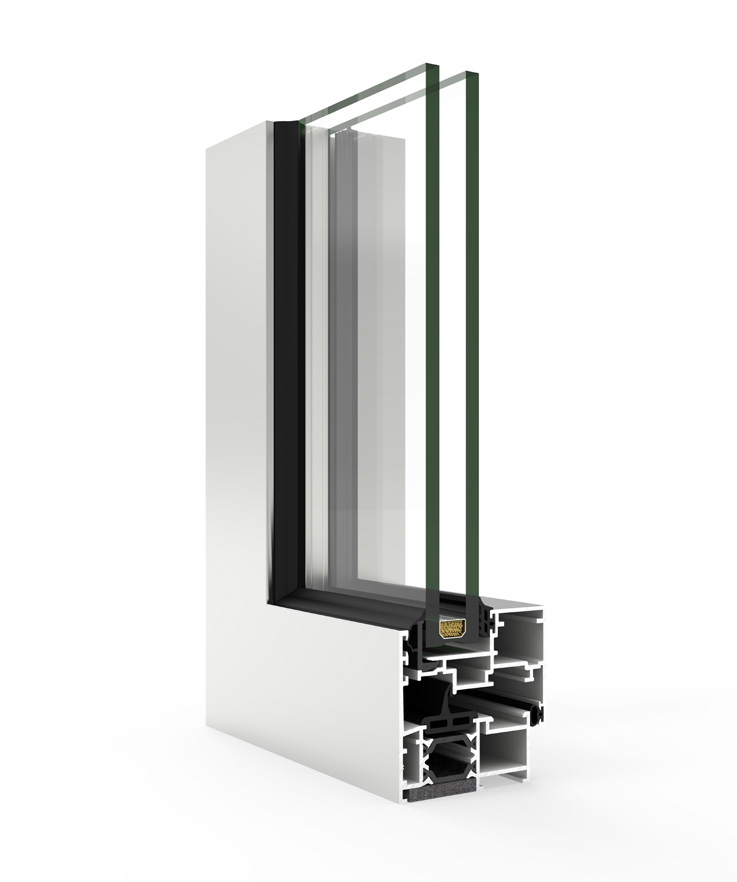

COR 60 Hidden Sash
TECHNICAL FILE

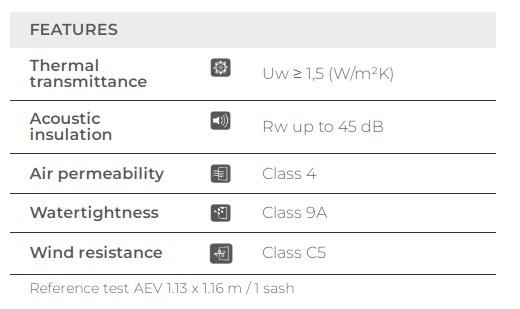

Transmittance
UW ≥ 1.5 (W/m2K)
Consult typology, dimensions and glass.
Acoustic insulation
Maximum glazing 34 mm
Minimum glazing 16 mm
Maximum acoustic insulation Rw = 45 dB

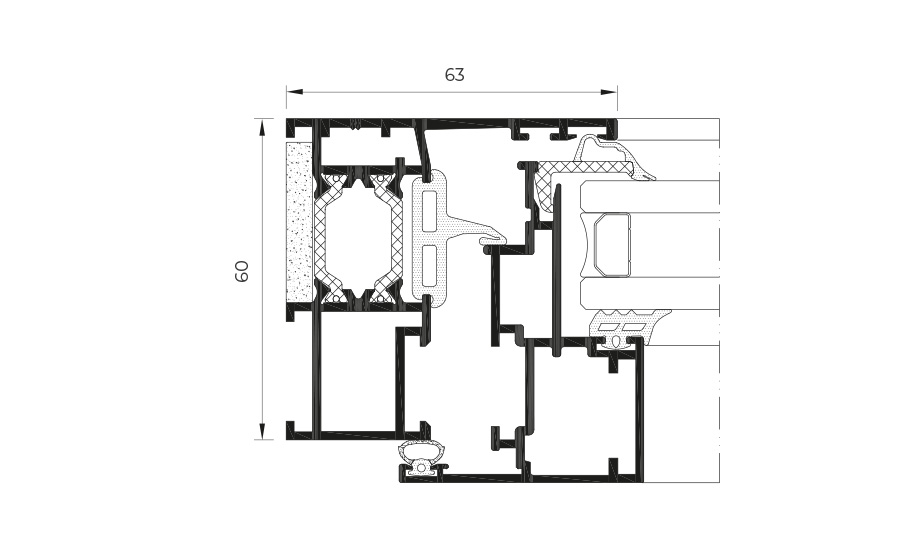

Sightlines
Frame 60 mm
Sash 60 mm
Profile Thickness
Window 1.6 mm
Balcony door 1.6 mm
Polyamide strip length 24 mm
Maximum dimensions / Sash
Width (L) = 1,300 mm
Height (H) = 2,400 mm
Consult maximum weight and dimensions according to typologies.
Maximum weight / Sash 160 kg
Categories achieved at test center
Protection against atmospheric agents.
Air permeability
(UNE-EN 12207): Class 4
Water tightness
(UNE-EN 12208): Class 9A
Wind resistance
(UNE-EN 12210): Class C5
* Reference test 1.13 x 1.16 m / 1 sash.
Test verified by
ALUMINIOS CORTIZO S.A.U.
Extrusion alloy 6063 T-5
Finishes
Possibility of dual color
Color powder coating (RAL, mottled & rough)
According to Qualicoat >60 microns
Wood effect powder coating
According to Qualideco standard
Anodized
According to Ewwa Euras / Standard Class 15 / Optionally Class 20 and 25
Opening possibilities
Inward opening: 1 & 2 sash side hung, 1 & 2 sash tilt &
Turn and bottom hung.
