DETAILS

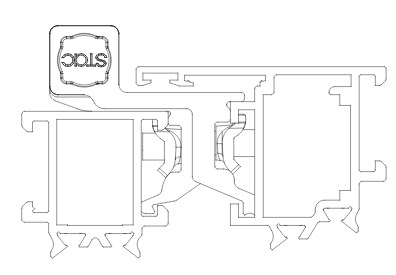

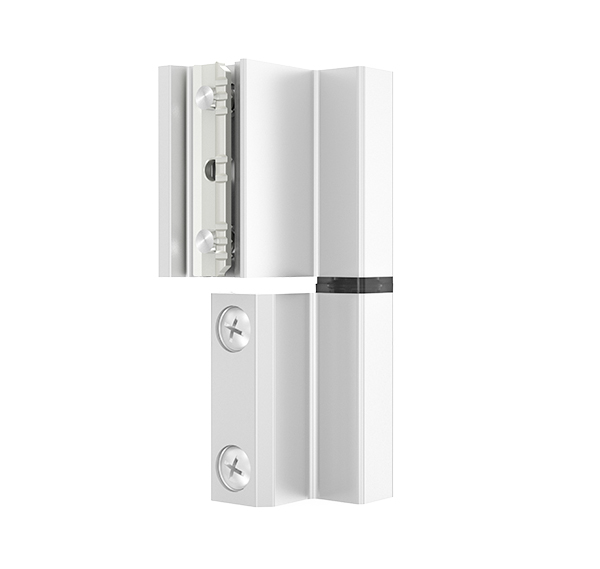

Window hinge for Eurogroove profiles.
• Valid for right-hand opening.
• Maximum load of 60 kg with 2 hinges.

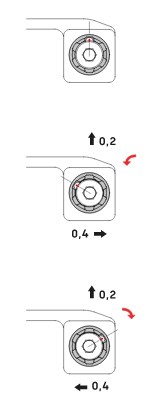

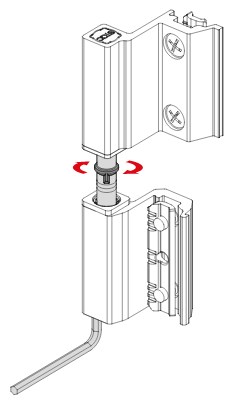

• Regulation by eccentric pin-bolt that allows lateral adjustment of ± 0.4 mm and tightening of 0.2 mm.
• Striker-plates made of stainless steel with system for pre-assembly to the channel.
•Striker-plates with serration for no slip between hinge, leaf and frame.

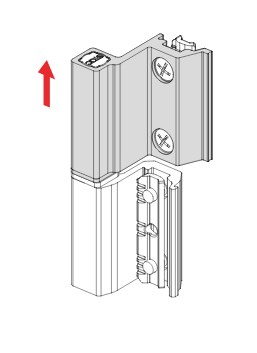

• Reversible ambidextrous hinge that is supplied pre-assembled for installation to the right or left.
