DETAILS

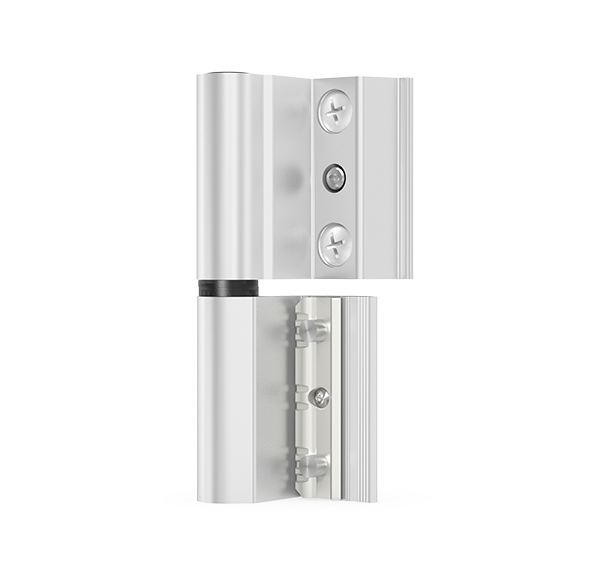

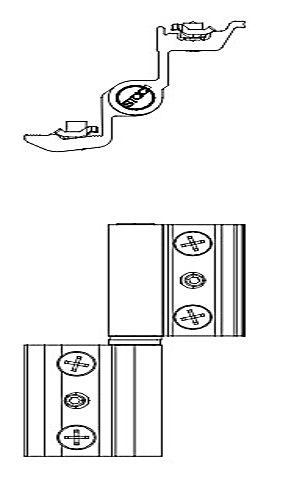

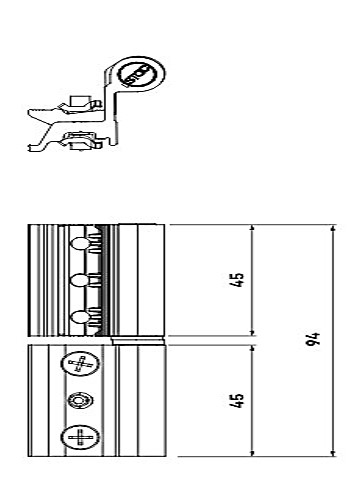

Window hinges for Euro Groove profiles.
• Maximum load with two-leaf hinges: 60 kg with 2 units .

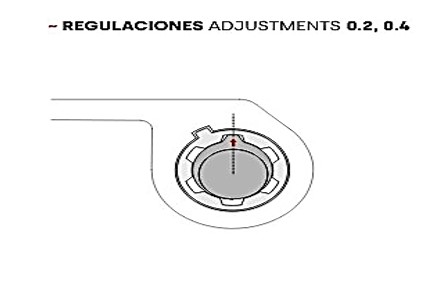

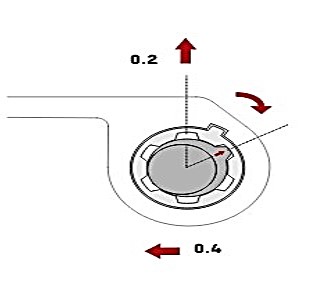

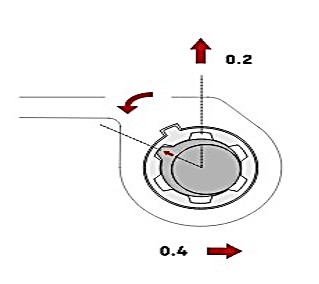

• The hinge has an eccentric pin that allows a ± 0.4 mm horizontal adjustment and 0.2mm tightening adjustment.
• The hinge frame leaf is universal to fit most of the frame Euro Groove window profiles.
• Self-assembly hinge: the geometry of the leaves and counterplates allows direct mounting without grooving.
• Supplied with stainless steel counterplates.
• Stainless steel anti-slip counterplates doubles the gripping capacity and improves the pre-
assembly of the hinges.
