Sliding Window and Door Systems
4200 COR
TECHNICAL FILE
Transmittance
UW ≥ 1.5 (W/m2K)
Consult typology, dimensions and glass.
Acoustic insulation
Maximum glazing 26 mm
Minimum glazing 6 mm
Maximum acoustic insulation Rw = 39 dB

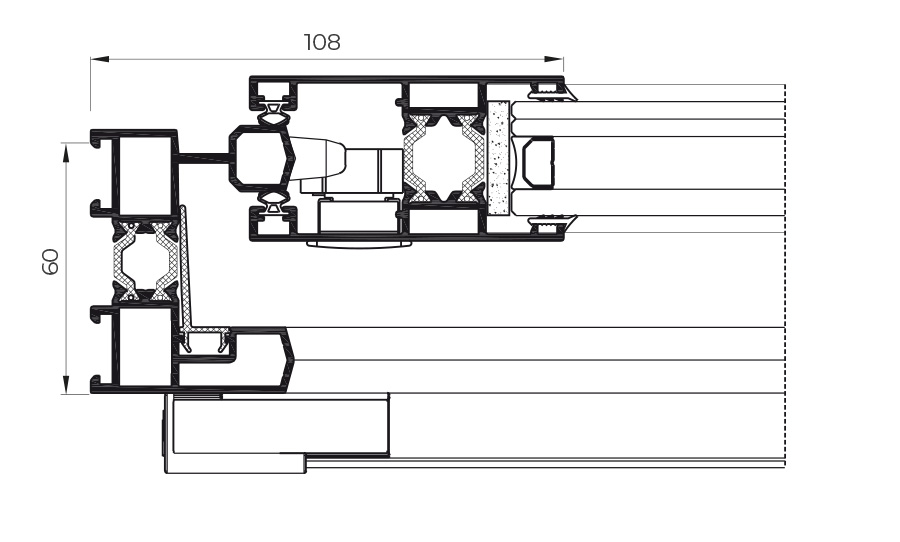

Sightlines
Frame 60, 65, 77, 80 mm
106, 126 mm 3 rails
Sash 33 / 37 mm
Profile Thickness
Door 1.5 mm
Polyamide strip length 14.6 - 20 mm
Maximum sash dimensions
Width (L) = 2,200 mm
Height (H) = 2,600 mm
Consult maximum dimensions according to typologies.
Maximum sash weight
100 kg 45º sash encounter
kg 90º sash encounter200
Consult maximum weight according to typologies.

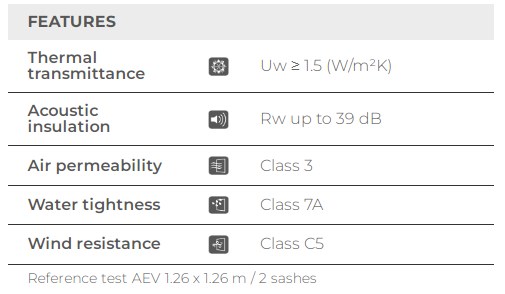

Categories achieved at test center
Protection against atmospheric agents.
Air permeability
(UNE-EN 12207): Class 3
Water tightness
(UNE-EN 12208): Class 7A
Wind resistance
(UNE-EN 12210): Class C5
* Reference test 1.26 x 1.26 m / 2 sashes.
Test verified by
ALUMINIOS CORTIZO S.A.U.
Extrusion alloy 6063 T-5
Finishes
Possibility of dual color.
Color powder coating (RAL, mottled & rough).
According to Qualicoat >60 microns
Wood effect powder coating.
According to Qualideco standard
Anodizing.
According to Ewwa Euras / Standard Class 15 / Optionally Class 20 and 25
Opening possibilities

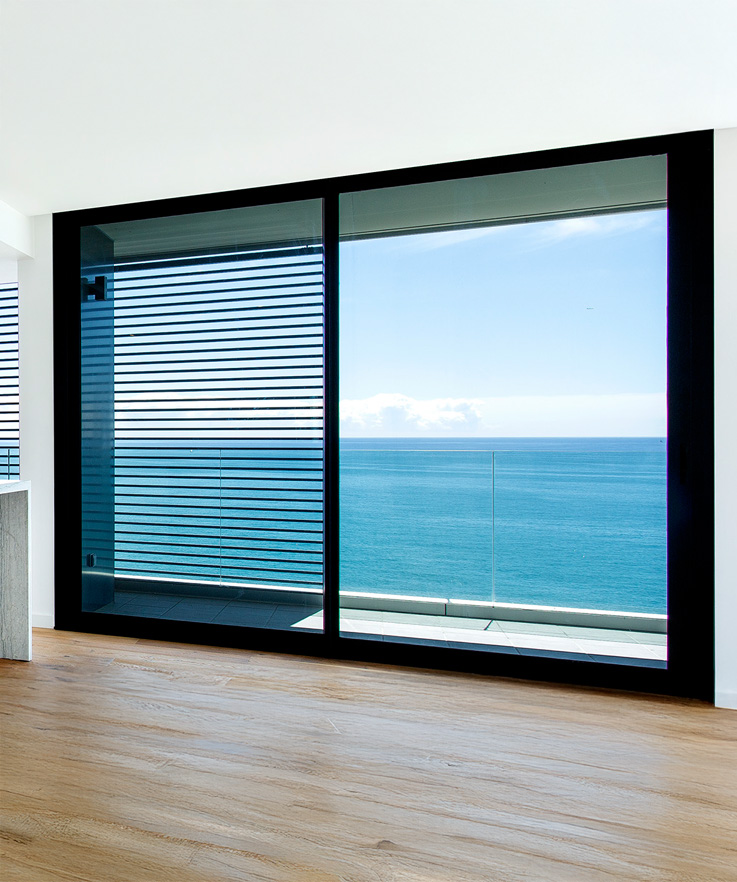

Sliding with 2, 3, 4 & 6 sashes.
Possibility of 3 rails.
1 & 2 rails pocket sliding door of 1,2 & 4 sashes.
