TECHNICAL FILE
Transmittance
UW ≥ 1.0 (W/m2K)
Consult typology, dimensions and glass.
Acoustic insulation
Maximum glazing 36 mm
Minimum glazing 26 mm
Maximum acoustic insulation Rw = 40 dB

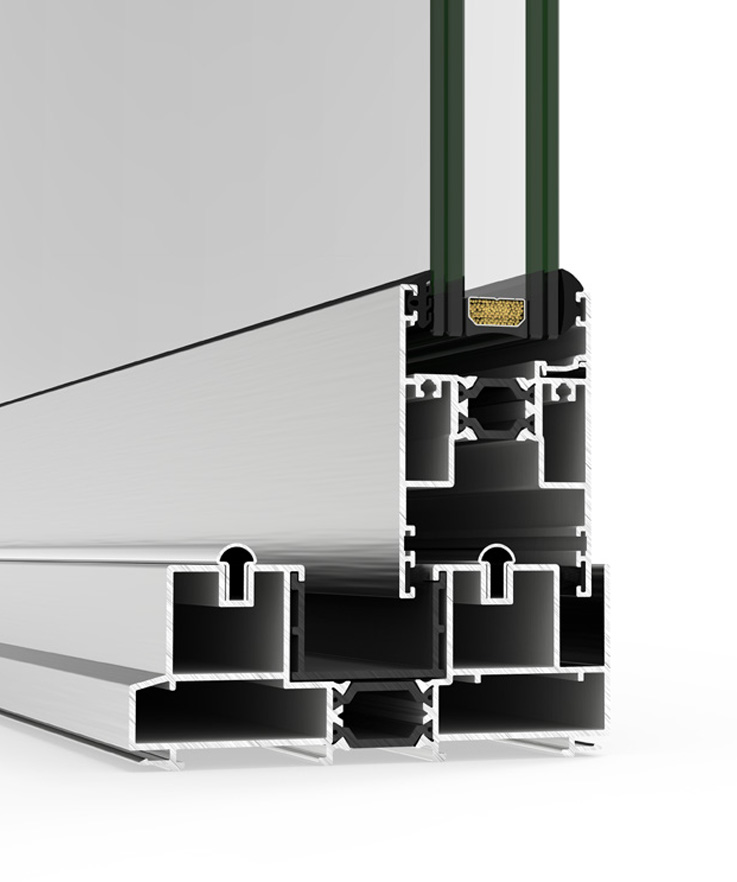

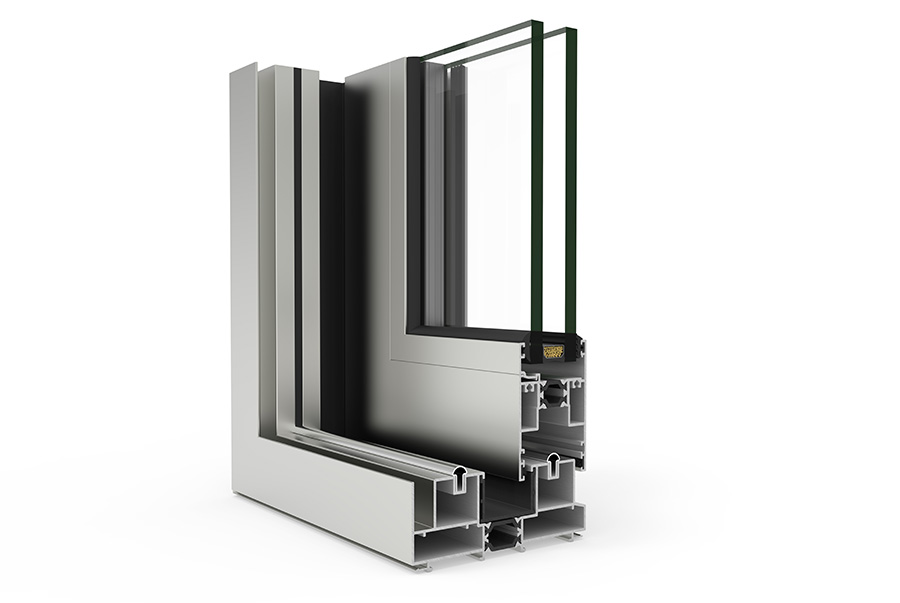

Sightlines

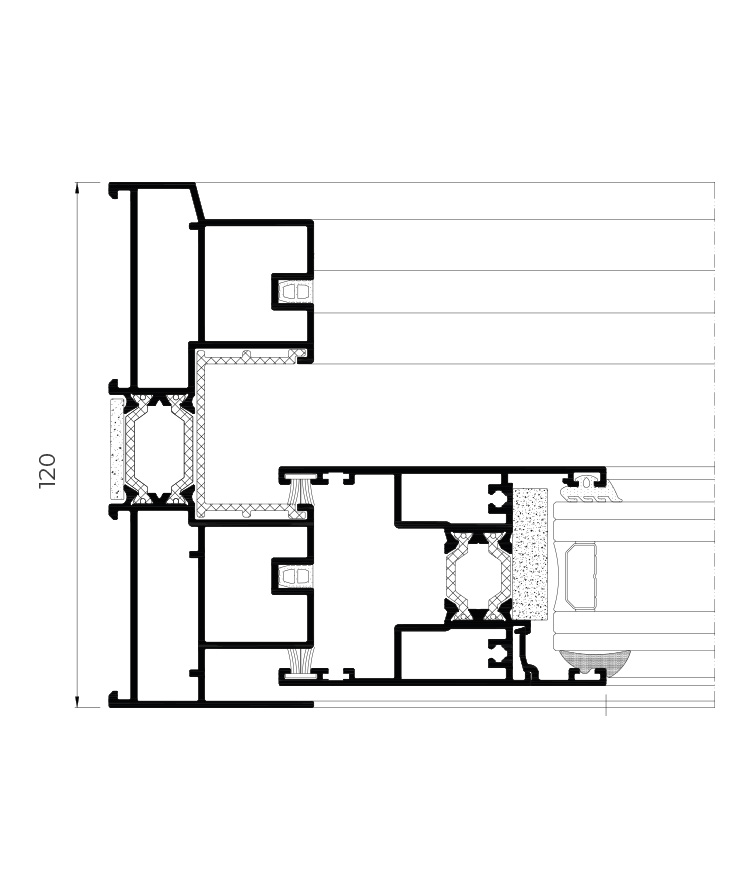

Frame 120 and 115 mm
185 mm 3 rails
Sash 50 mm
Profile Thickness
Door 1.5 mm
Polyamide strip length 20 - 25 mm
Maximum dimensions / Sash
Width (L) = 2,500 mm
Height (H) = 3,000 mm
Consult maximum weight and dimensions according to typologies.
Maximum weight / Sash 280 kg In-line Slider
300kg Lift & Slide

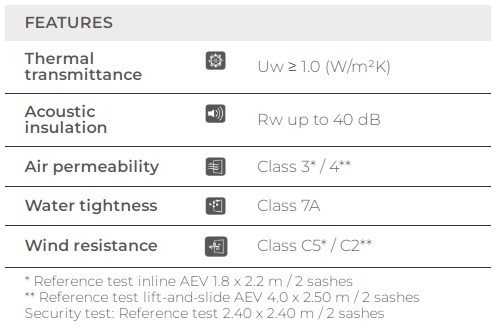

Categories achieved at test center
Protection against atmospheric agents.
Air permeability
UNE-EN 12207): Class 3* / 4**)
Water tightness
(UNE-EN 12208): Class 7A
Wind resistance
(UNE-EN 12210): Class C5* / C2**
* Reference in-line slider test 1.8 x 2.2 m / 2 sashes
** Reference lift & slide test 4.0 x 2.50 m / 2 sashes
Security test:
Passed
* Security test: Reference test 2.40 x 2.40 m / 2 sashes
Test verified by
ALUMINIOS CORTIZO S.A.U.
Extrusion alloy 6063 T-5
Finishes
Possibility of dual colour.
Colour powder coating (RAL, mottled & rough).
According to Qualicoat >60 microns
Wood effect powder coating.
According to Qualideco standard
Anodised.
According to Ewwa Euras / Standard Class 15 / Optionally Class 20 and 25
Opening possibilities
Sliding with 2, 3, 4, 6 & 8 sashes.
Possibility of 1 rail (1 sash + 1 fixed light).
Possibility of 2, 3 & 4 rails.
1,2,3 &4 sash pocket sliding door
