TECHNICAL FILE

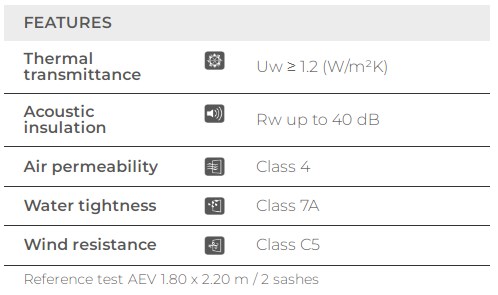

Transmittance
UW ≥ 1.2 (W/m2K)
Consult typology, dimensions and glass.
Acoustic insulation
Maximum glazing 36 mm
Minimum glazing 24 mm
Maximum acoustic insulation Rw = 40 dB

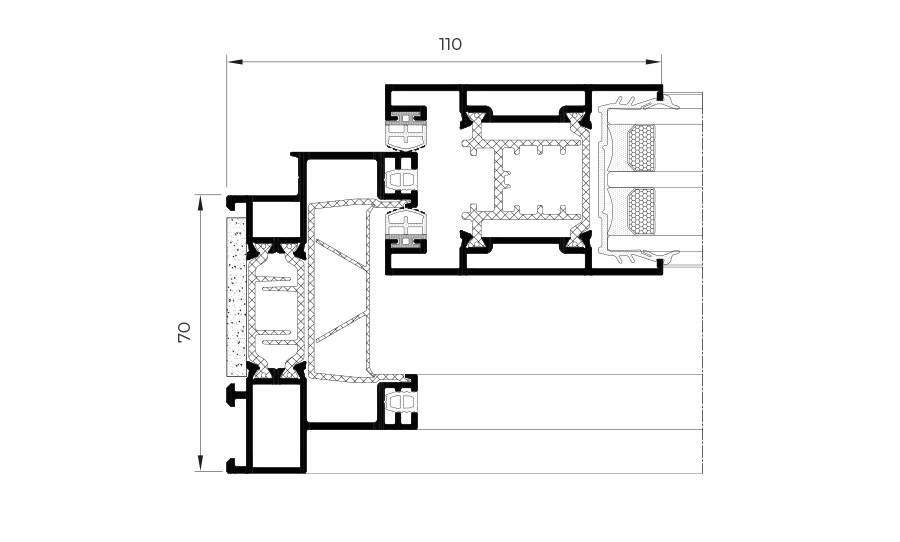

Sightlines
Frame 60, 70, 89, 120,125,130 mm
126, 145 mm 3 rails
201 mm 4 rails
Sash 48 mm
Profile Thickness
Door 1.6 mm
Polyamide strip length 34 mm
Maximum sash dimensions
Width (L) = 2,200 mm
Height (H) = 3,000 mm
Consult maximum dimensions according to typologies.
Maximum sash weight 240 kg
Consult maximum weight according to typologies.
Categories achieved at test center
Protection against atmospheric agents.
Air permeability
(UNE-EN 12207): Class 4
Water tightness
(UNE-EN 12208): Class 7A
Wind resistance
(UNE-EN 12210): Class C5
* Reference test 1.80 x 2.20 m / 2 sashes
Test verified by
ALUMINIOS CORTIZO S.A.U.
Extrusion alloy 6063 T-5
Finishes
Possibility of dual colour.
Colour powder coating (RAL, mottled & rough).
According to Qualicoat >60 microns
Wood effect powder coating.
According to Qualideco standard
Anodising.
According to Ewwa Euras / Standard Class 15 / Optionally Class 20 and 25
Opening possibilities
Sliding with 2, 3, 4, 6 & 8 sashes
Possibility of 1 rail (1 sash + 1 fixed light), 2, 3 & 4 rails.
Pocket sliding door 1, 2, 3, 4 & 6 sashes
Possibility of 90º opening without a mullion
