TECHNICAL FILE

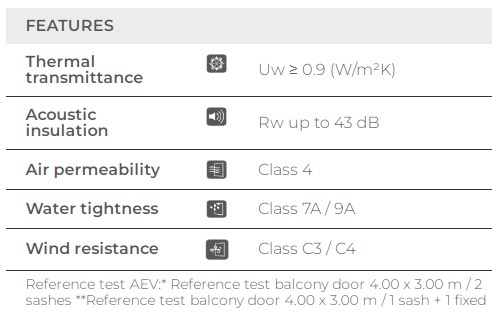

Transmittance
UW ≥ 0.9 (W/m2K)
Consult typology, dimensions and glass.
Acoustic insulation
Maximum glazing 56 mm
Minimum glazing 36 mm
Maximum acoustic insulation Rw = 43 dB

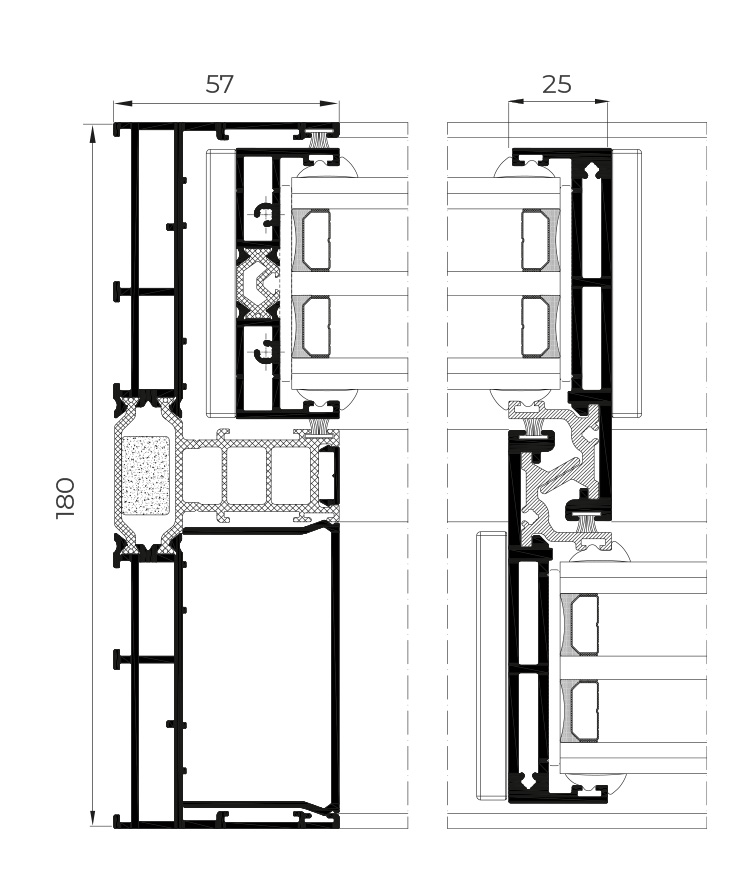

Sightlines
Frame 180 mm
278 mm 3 rails
Sash 69 mm
Profile Thickness
Door 2.0 mm
Polyamide strip length
Frame 40 mm
Sash 18 / 32 mm
Maximum dimensions / Sash
Width (L) = 4,000 mm
Height (H) = 4,000 mm
Consult maximum weight and dimensions according to typologies.
Maximum weight / Sash 400 kg Manual
700kg Motorised
Categories achieved at test center
Protection against atmospheric agents.
Air permeability
UNE-EN 12207): Class 4)
Water tightness
(UNE-EN 12208): Class 7A* / 9A**
Wind resistance
(UNE-EN 12210): Class C3* / C4
* Balcony door reference test 4,00 x 3,00 m / 2 sashes
** Balcony door reference test 4,00 x 3,00 m / 1 sash + 1 fixed light
Test verified by
ALUMINIOS CORTIZO S.A.U.
Extrusion alloy 6063 T-5
Finishes
Possibility of dual colour.
Colour powder coating (RAL, mottled & rough).
According to Qualicoat >60 microns
Wood effect powder coating.
According to Qualideco standard
Anodised.
According to Ewwa Euras / Standard Class 15 / Optionally Class 20 and 25
Opening possibilities
Sliding with 1, 2, 3, 4 & 6 sashes
Possibility of 1, 2, 3 or 4 rails
Possibility of corner opening sash at 90º without a mullion
Pocket sliding door of 1, 2, 3 & 4 sashes
