TECHNICAL FILE

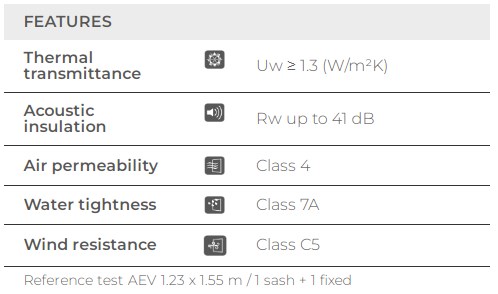

Transmittance
UW ≥ 1.3 (W/m2K)
Consult typology, dimensions and glass.
Acoustic insulation
Maximum glazing 30 mm
Minimum glazing 26 mm
Maximum acoustic insulation Rw = 41 dB

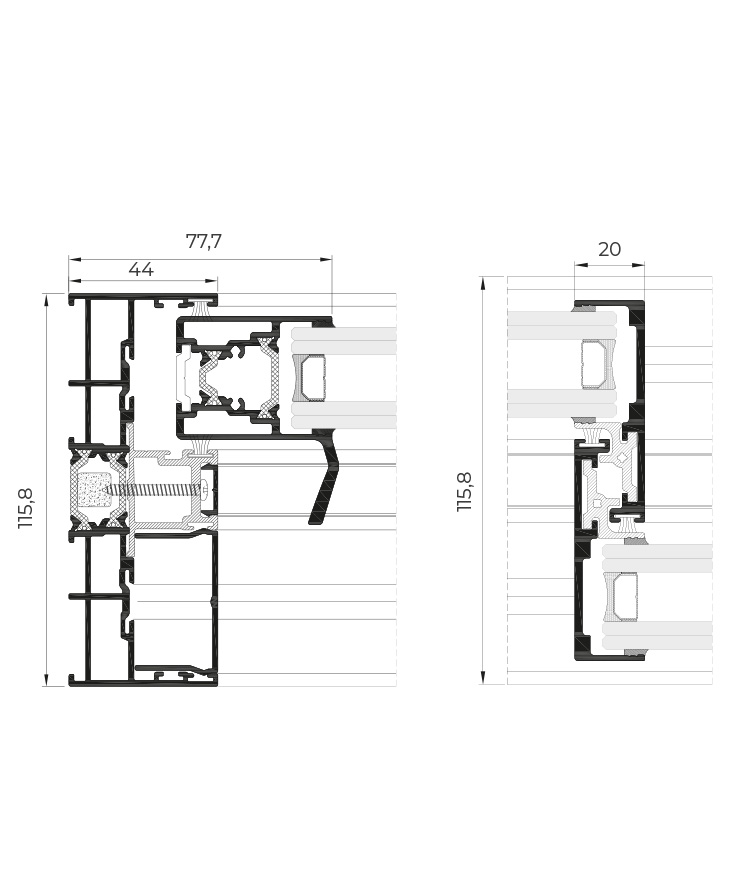

Sightlines
Frame 116 mm
182 mm 3 rails
Sash 37 mm
Profile Thickness
Door 1.7 mm
Polyamide strip length 16 - 24 mm
Maximum dimensions / Sash
Width (L) = 2,500 mm
Height (H) = 3,000 mm
Consult maximum weight and dimensions according to typologies.
Maximum weight / Sash 320 kg
Categories achieved at test center
Protection against atmospheric agents.
Air permeability
(UNE-EN 12207): Class 4
Water tightness
(UNE-EN 12208): Class 7A
Wind resistance
(UNE-EN 12210): Class C5
* Reference test 1.23 x 1.55 m / 1 sash + 1 fixed light
Security test:
Passed
Test verified by
ALUMINIOS CORTIZO S.A.U.
Extrusion alloy 6063 T-5
Finishes
Possibility of dual colour.
Colour powder coating (RAL, mottled & rough).
According to Qualicoat >60 microns
Wood effect powder coating.
According to Qualideco standard
Anodised.
According to Ewwa Euras / Standard Class 15 / Optionally Class 20 and 25
Opening possibilities
Sliding with 1, 2, 3, 4 & 6 sashes
Possibility of 1, 2 or 3 rails
Possibility of inner and outer corner sash at 90º without a mullion
Pocket sliding door of 1, 2, 3, 4 & 6 sashes
