PERFORMANCE :

ADVANCED THERMAL PERFORMANCE . THE THERMAL INSULATION OF THE STANDARD GEODE VISBLE GRID SOLUTION IS PROVIDED VIA A 34 MM TPE INSULATOR BETWEEN THE PRESSURE PLATES AND THE MULLION AND TRANSOM STRUCTURE . THIS PRINCIPLE ENSURES OPTIMAL THERMAL PERFORMANCE AND MEETS OR EXCEEDS THE BUILDING´S REQUIREMENTS.

THERMAL INSULATION WITH GLAZING UG = 101 W/M2K:

*FIXED CURTAIN WALL WITH 80% GLAZING ( OPAQUE SLAB NOSE ) UCW=1.4 W/M2K.

*FIXED CURTAIN WALLING WITH 50% GLAZING ( 80 MM INSULATION PANEL, UP=0.35 ) UCW= 1.1 W/M2K

*AIR,WATER AND WIND RESISTANTIN ACCORDANCE WITH EUROPEAN AND CWCT STANDARD .

CONSTRUCTION :

*SIMPLIFIED MANUFACTURING . THE MULLIONS AND TRANSOMS ARE ASSEMBLED IN STRAIGHT CUTS A COMBINATION OF MOULDED CONNECTORS FIXED TO THE FRONT AND CONCEALED ANTI – ROTATION SPIGTS FOR EASE OF MANUFACTURE .

*FACETED FAÇADES. FOR FACETS UP TO + - 10°, STANDARD CONNECTORS MAY BE USED. A SPECIAL TRANSOM BLOCK COMBINING PRESSURE PLATES , CAPS AND ADAPTORS CAN BE USED FOR ANGLES BETWEEN 10° AND 20°.

*SPECIAL OPTION . THE TRANSOM ASSEMBLY BLOCK OPTIONS OFFERS AN ALTERNATIVE TO ANTI-ROTATION PARTS IN ORDER TO MEET REQUIREMENTS IN RELATION TO DESIGN OR THE PROJECT IN GENERAL .

PHOTOS :

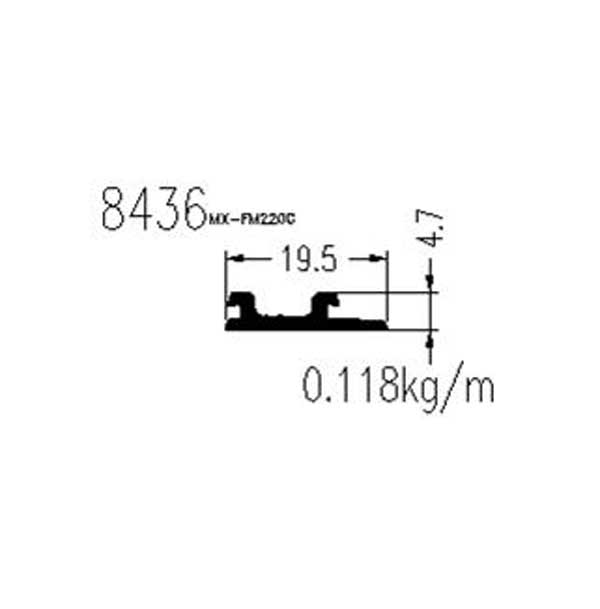

ALUMINUM PROFILES :

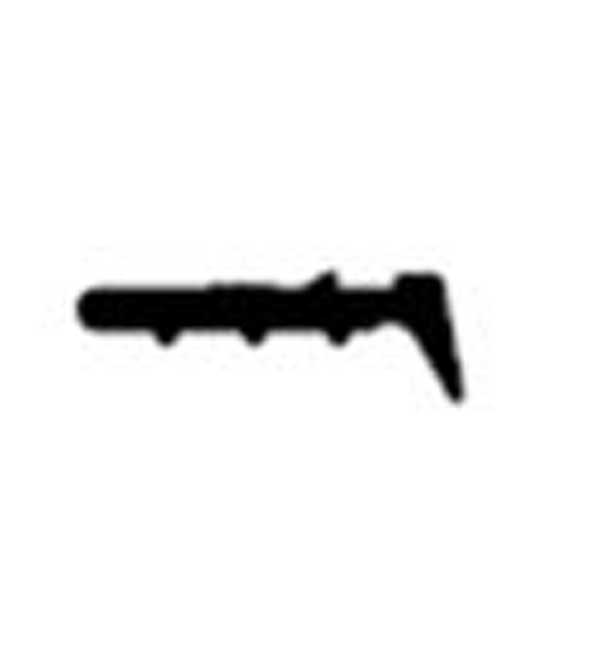

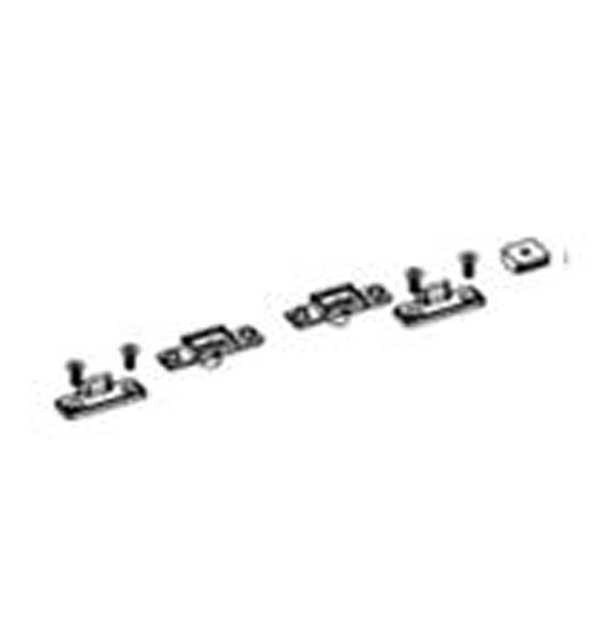

ACCESSORIES :

COLORS :

BROCHURE MX TECHNAL FRANCE

GEODE - BROCHURE-MX

MX CURTAIN WALLING SUITE

MX CONTRATAPA

MX CONC- CURTAIN WALL APPLICATION
